    18w 2FT LED Batten Light IP20 LED Office Batten Light 3000K 4000K 5000K 6000K

    Ask Lasest Price
    Brand Name : COMLED
    Model Number : ZL-JSBLP18-2FT-CN
    Certification : CE SAA and C-Tick (RCM)
    Price : US$27.3-US$32.76/piece
    Payment Terms : T/T
    Supply Ability : 10000pcs per month
    Delivery Time : 7-30 days(sample around 3-7 days)
    • Product Details
    • Company Profile

    18w 2FT LED Batten Light IP20 LED Office Batten Light 3000K 4000K 5000K 6000K

    2FT LED Batten Light , IP20 LED Office Batten Light , LED Ceiling Slim Batten Fixture
    2FT LED Batten Light is an ideal lighting solution for office environments, commercial shops, and parking lots. This slim, modern fixture features a sleek design with high performance, making it a perfect fit for ceiling installations where space and style are a priority. With its sturdy steel body, polycarbonate diffuser, and IP20 rating, this batten light ensures durability while providing bright, glare-free illumination. Available in sensor dimming and emergency versions, it offers flexibility and convenience for various indoor settings.

    Key Features:


    Durable Construction: Crafted with a 0.5mm thick white-coated steel housing and a high-transmittance PC diffuser, it ensures longevity and even light distribution.

    Easy Installation & Maintenance: The sliding mounting system with a separate fixed plate simplifies wiring and maintenance, making it highly user-friendly.

    Energy-Efficient Technology: Incorporates SMD2835 LED chips, delivering high luminous efficacy up to 140lm/W for optimal energy savings.

    Optional Sensor Dimming: Equipped with a 5.8G HF microwave sensor for stepped dimming (100%-20%-OFF), allowing for intelligent light control and improved energy efficiency.

    Emergency Function Available: With an optional LiFePO4 battery, the emergency version provides over 3 hours of backup lighting, ensuring safety during power outages.

    LED Batten Light(J-series) Specification Parameter Data:


    ModelInput voltageWattSensor dimming standbyEmergency
    ZL-JSBLP18-2FT-CNAC110V or 230V18wxx
    ZL-JSBLP36-4FT-CNAC110V or 230V36wxx
    ZL-JSBLP18-2FT-CSAC110V or 230V18w100% / 20% /OFFx
    ZL-JSBLP36-4FT-CSAC110V or 230V36w100% / 20% /OFFx
    ZL-JSBLP18-2FT-CEAC110V or 230V18wx>3hrs@3.6W
    ZL-JSBLP36-4FT-CEAC110V or 230V36wx>3hrs@3.6W
    ZL-JSBLP18-2FT-CESAC110V or 230V18w100% / 20% /OFF>3hrs@3.6W
    ZL-JSBLP36-4FT-CESAC110V or 230V36w100% / 20% /OFF>3hrs@3.6W
    Note: x -No this function

    LED Batten Light Fixture(J-series) Specification Details:


    LUMINAIRE INFORMATION
    ModelZL-JSBLP18-2FTZL-JSBLP36-4FT
    Rated Power18W36W
    InstallSurface Mount/Suspended/Linkable
    Protection RatingIP20
    HousingSteel with Coating
    OpticsPolycarbonate Milky Diffuser
    Connection TypeTerminal Block or Linkable
    Operating Temperature-20℃ to 40℃(Emergency version: 0℃ to 40℃)
    Warranty5 Years(battery for 1 year)
    Dimming (Option)Microwave Sensor - 3 Stepped Version(100%-20%-OFF)
    Emergency (Option)3 Hours+ @3.6W LiFePO4 Battery
    PHOTOMETRIC
    Luminous Efficacy110-140lm/w
    LEDSMD2835
    CCT3000K/4000K/5000K/6000K
    CRI>80
    Beam Angle120 degree
    ELECTRICAL
    Input power SupplyAC200-240V, 50/60Hz
    Power Factor> 0.9
    Lifespan@Ta25°(L70)54,000 hours
    Electrical ClassificationClass I
    Dimensions650*113*96mm1260*113*96mm

    LED Batten Light Fixture Product Application

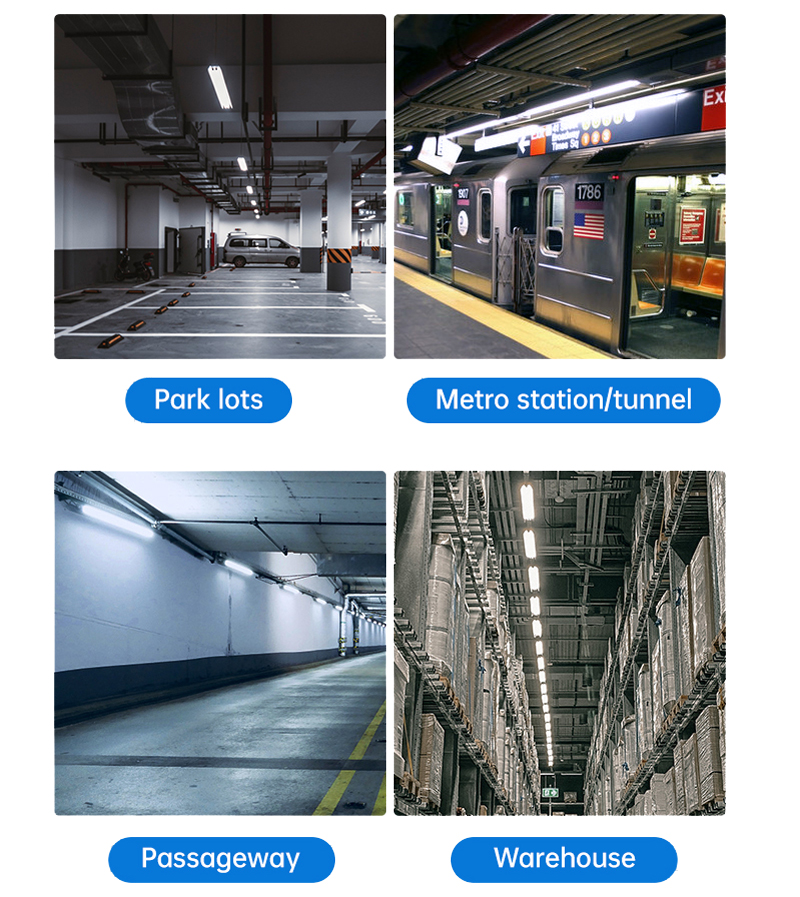

    This image introduces the application scenarios of the LED Batten Light product, including various commercial and industrial locations such as underground parking lots, subway stations, tunnels, warehouses, and more.


    Maintenance:


    Removable Back Plate
    LED Batten Light Maintenance 1 Removable Back Plate

    Quick Installation
    LED Batten Light Maintenance 2 Quick Installation

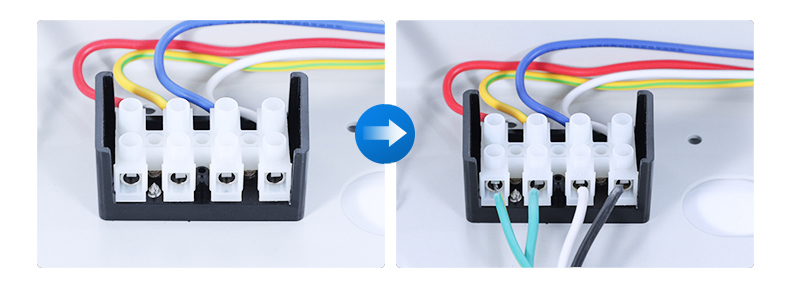

    Huge terminal block for holding multiple wires
    LED Batten Light Maintenance 3 Huge terminal block for holding multiple wires

    Plug and play connection
    LED Batten Light Maintenance 4 Plug and play connection

    Special housing for quick replace battery
    LED Batten Light Maintenance 5 Special housing for quick replace battery



    LED Batten Light Size:


    This image presents the appearance and dimensions of the COMLED J-Series luminaires in three standard models: 2FT,and 4FT.
