5FT 44W LED Compact Batten Fixture With Sensor , LED Low Bay
Moisture Proof Lights 120 Degree
The 5FT 44W LED Compact Batten Fixture with Sensor is a versatile
and high-performance lighting solution, designed to provide optimal
illumination in moisture-prone environments. Built with durable
polycarbonate housing and a milky diffuser, it is engineered for
reliability with an IP65 waterproof rating and IK08 impact
resistance. Featuring advanced SMD LED technology, this fixture
delivers superior brightness, making it ideal for various
applications, including fire stairs, rail or metro stations,
supermarkets, and parking lots. It offers multiple functional
options such as sensor dimming and emergency lighting, ensuring it
meets the diverse needs of industrial and commercial spaces.
Product Features:
Durable and Resilient Construction: The fixture boasts a high-grade
polycarbonate housing and diffuser, ensuring waterproof protection
(IP65) and high impact resistance (IK08), perfect for harsh
environments.
High Light Efficiency: Equipped with SMD2835 LED chips, this batten
light achieves a high lumen output while maintaining energy
efficiency, approved by LM80 for long-lasting performance.
Flexible Installation Options: The fixture supports both
surface-mounted and suspended installation, making it adaptable to
different ceiling heights and room designs.
Smart Sensor Dimming: With an optional 5.8G HF sensor, the light
provides dimming functionality, adjusting automatically based on
movement to conserve energy and enhance user convenience.
Emergency Lighting Capability: An optional emergency function
ensures continuous operation in critical situations, making it
ideal for safety-compliant areas like evacuation passages and
stairwells.
LED Compact Batten Light Fixture(U-Series)Specification Parameter
Data:
| Model | Input voltage | Watt | Sensor Dimming standby | Emergency |
| ZL-USBPL18-2FT-CN | AC200 - 240V | 18w | x | x |
| ZL-USBPL36-4FT-CN | AC200 - 240V | 36w | x | x |
| ZL-USBPL44-5FT-CN | AC200 - 240V | 44w | x | x |
| ZL-USBPL18-2FT-DS | AC200 - 240V | 18w | 100% / 20% /OFF | x |
| ZL-USBPL36-4FT-DS | AC200 - 240V | 36w | 100% / 20% /OFF | x |
| ZL-USBPL44-5FT-DS | AC200 - 240V | 44w | 100% / 20% /OFF | x |
| ZL-USBPL18-2FT-CE | AC200 - 240V | 18w | x | >3hrs@3.6W / >3hrs@2W |
| ZL-USBPL36-4FT-CE | AC200 - 240V | 36w | x | >3hrs@3.6W / >3hrs@2W |
| ZL-USBPL44-5FT-CE | AC200 - 240V | 44w | x | >3hrs@3.6W / >3hrs@2W |
| ZL-USBPL18-2FT-DES | AC200 - 240V | 18w | 100% / 20% /OFF | >3hrs@3.6W / >3hrs@2W |
| ZL-USBPL36-4FT-DES | AC200 - 240V | 36w | 100% / 20% /OFF | >3hrs@3.6W / >3hrs@2W |
| ZL-USBPL44-5FT-DES | AC200 - 240V | 44w | 100% / 20% /OFF | >3hrs@3.6W / >3hrs@2W |
| Note: x -No this function |
LED Compact Batten Light Fixture(U-Series) Specification Details:
| LUMINAIRE INFORMATION |
| Model | ZL-USBPL18-2FT | ZL-USBPL36-4FT | ZL-USBPL44--5FT |
| Rated Power | 18W | 36W | 44W |
| Install | Surface Mount/Suspended/Linkable |
| Protection Rating | IP65 IK08 |
| Housing | Polycarbonate |
| Optics | Polycarbonate Milky Diffuser |
| Connection Type | Terminal Block |
| Operating Temperature | -20℃ to 40℃(Emergency version: 0℃ to 40℃) |
| Warranty | 3 Years(battery for 1 year) |
| Dimming Option | Microwave Sensor - 3 Stepped Version(100%-20%-OFF) |
| Emergency Option | 3 Hours+ @2W LiFePO4 Battery |
| PHOTOMETRIC |
| Luminous Efficacy | 110-140lm/w |
| LED | SMD2835 |
| CCT | 3000K/4000K/5000K/6000K |
| CRI | >80 |
| Beam Angle | 120 degree |
| ELECTRICAL |
| Input power Supply | AC200-240V, 50/60Hz |
| Power Factor | > 0.9 |
| Useful Life@Ta25°(L70) | 54,000 hours |
| Electrical Classification | Class I |
| Dimensions | 650*100*90mm | 1260*100*90mm | 1560*100*90mm |
LED Compact Batten Light Application
This LED Compact Batten Light fixture is widely used in fire
stairways, railway or metro stations, supermarkets, stairwells,
corridors, and evacuation passages, making it especially suitable
for parking lots, electrical rooms, ships, and other basement
areas.

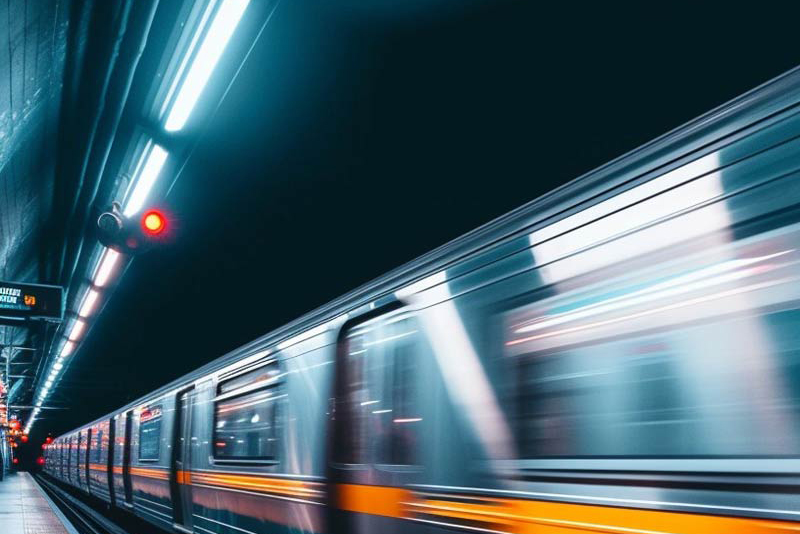

Metro Station |
Parking Lot |
Stair well |
Corridor |
Supermarkets |
