IP65 IK10 Waterproof 600mm LED Batten Light Fitting With Quick Wiring Design

Ask Lasest Price
Brand Name :	COMLED
Model Number :	ZL-MBLP18-2FT-DN
Certification :	CE SAA and C-Tick (RCM)
Price :	US$27.85-US$33.42/ piece
Payment Terms :	T/T
Supply Ability :	10000pcs per month
Delivery Time :	7-30 days(sample around 3-7 days)

Add to Cart

Product Details
Company Profile

IP65 IK10 Waterproof 600mm LED Batten Light Fitting With Quick Wiring Design

IP65 IK10 Waterproof 600mm Batten LED Light Fitting With Quick Wiring Design

The IP65 / IK10 waterproof 600mm batten LED light fitting is designed for harsh environments, providing reliable illumination with high durability. Its robust aluminum housing and PC milky diffuser ensure long-lasting performance, while the quick wiring design simplifies installation. Ideal for industrial applications, this energy-efficient solution delivers exceptional light output and superior protection.

Key Features:

Durable construction with IP65 and IK10 ratings for water and impact resistance.
Efficient 120-150lm/W luminous efficacy with SMD2835 LED chips.
Quick-connect socket for fast and hassle-free wiring.
3-step dimming option (100%-20%-OFF) for adaptable lighting needs.
Wide beam angle of 120 degrees ensures broad, uniform illumination.

LED Batten Light Fitting(M-series) Specification Parameter Data:

Model	Input voltage	Watt	Sensor dimming standby	Emergency	Dispaly and Remote setting(option)
ZL-MBLP18-2FT-DN	AC110V or 230V	18W	x	x	√
ZL-MBLP36-4FT-DN	AC110V or 230V	36W	x	x	√
ZL-MBLP44-5FT-DN	AC110V or 230V	44W	x	x	√
ZL-MBLP18-2FT-DS	AC110V or 230V	18w	100% / 20% /OFF	x	√
ZL-MBLP36-4FT-DS	AC110V or 230V	36W	100% / 20% /OFF	x	√
ZL-MBLP44-5FT-DS	AC110V or 230V	44w	100% / 20% /OFF	x	√
ZL-MBLP18-2FT-DE	AC110V or 230V	18W	x	>3hrs@2W	√
ZL-MBLP36-4FT-DE	AC110V or 230V	36w	x	>3hrs@2W	√
ZL-MBLP44-5FT-DE	AC110V or 230V	44w	x	>3hrs@2W	√
ZL-MBLP18-2FT-DES	AC110V or 230V	18W	100% / 20% /OFF	>3hrs@2W	√
ZL-MBLP36-4FT-DES	AC110V or 230V	36w	100% / 20% /OFF	>3hrs@2W	√
ZL-MBLP44-5FT-DES	AC110V or 230V	44w	100% / 20% /OFF	>3hrs@2W	√
*Note: √ -Contain* this function; x -No this function**

LED Batten Light Fitting(M-series) Specification Details:

Model	ZL-MBLP18-2FT	ZL-MBLP36-4FT	ZL-MBLP44-5FT
Rated Power	18W	36W	44W
Install	Surface Mount/Hanging/Suspended
Protection Rating	IP65 IK10
Housing	Aluminum
Optics	PC Milky Diffuser
Connection Type	Quick Wiring
Operating Temperature	-20℃ to 40℃(Emergency version: 0℃ to 40℃)
Warranty	5 Years
Dimming(Option)	Sensor Dimming - 3 Stepped Version(100%-20%-off)
Emergency(Option)	3 Hours+ @3W LiFePO4 Battery
PHOTOMETRIC
Luminous Efficacy	120-150lm/W
LED Chips	SMD2835
CCT	3000K/4000K/5000K/6500K
CRI	>85
Beam Angle	120 degree
ELECTRICAL
Input power Supply	AC200-240V/50-60HZ
Power Factor	0.92
Flicker	No Flicker
Lifespan@Ta25°(L70)	54,000 hours
Package Dimensions	6208570mm	12208570mm	15208570mm

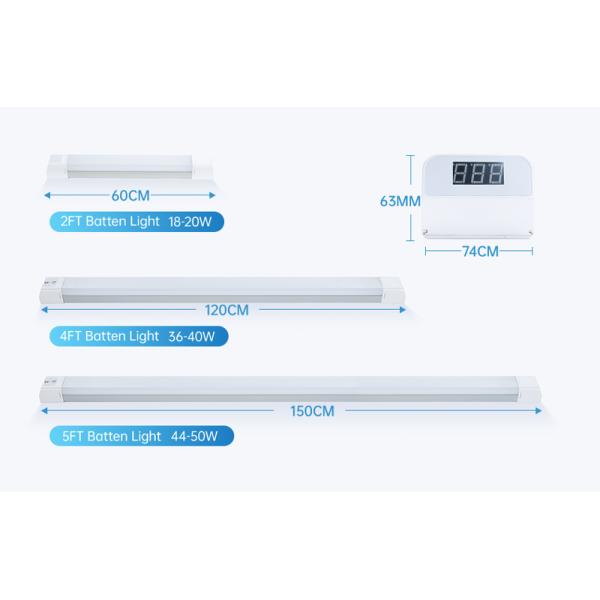

LED Batten Light Fitting Size:

This image presents the appearance and dimensions of the COMLED M-Series luminaires in three standard models: 2FT, 4FT, and 5FT.

LED Batten Light Fitting Package Specification

Every lumianire is packed by PP big for dust-proof and scratch proof.
